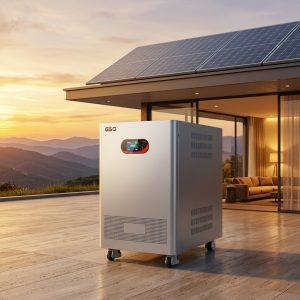

15KWh Wheel Tybe Lifepo4 Battery

48V 300AH Home Storage Battery

The product utilizes Top grade A cell, designed to last over 10 years;
Easy maintenance and operation;

Functions: 1.Over-temperature alarm protection
2.Over-charge and over-discharge protection
3.Short-circuit protection
4.Seamless connection with UPS, photovoltaic power generation and other mainequipment

MODEL

GBP

48-280L

48-330L

48-560L

48-600L

51.2-280L

51.2-300L

51.2-560L

51.2-600L

Nominal voltage

48V

51.2V

Cell specification

280Ah

300Ah

314Ah

280Ah

300Ah

314Ah

280Ah

300Ah

314Ah

280Ah

300Ah

314Ah

Nominal capacity

280Ah

300Ah

560Ah

600Ah

280Ah

300Ah

560Ah

600Ah

Working volt range

42～54.75V

44.8～58.4V

Recommended charging volt

51.75V

55.2V

Recommended discharging

cut-off volt

45V

48V

Standard charging/

dischargingcurrent

100A

Maximum continuous

charging/discharging current

150A

200A

150A

200A

Proper temperature

-30～60℃(Recommended 10～35)

Allowable humidity range

＜85%RH

Storage temperature

-20～65℃(Recommended 10～35)

Charging temperature

0～50℃

Discharging temperature

-10～60℃

Protection level

IP20

Cooling method

Natural air cooling

Maximum size

(D*W*H)

248*680*880mm

890*350*1060mm

248*680*880mm

890*350*1060mm

Net weight

136.5kg

144kg

280kg

295kg

139kg

147kg

284kg

300kg
