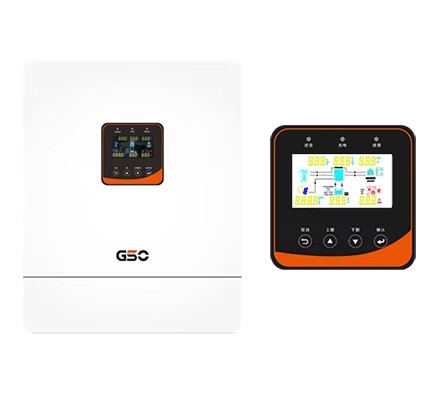

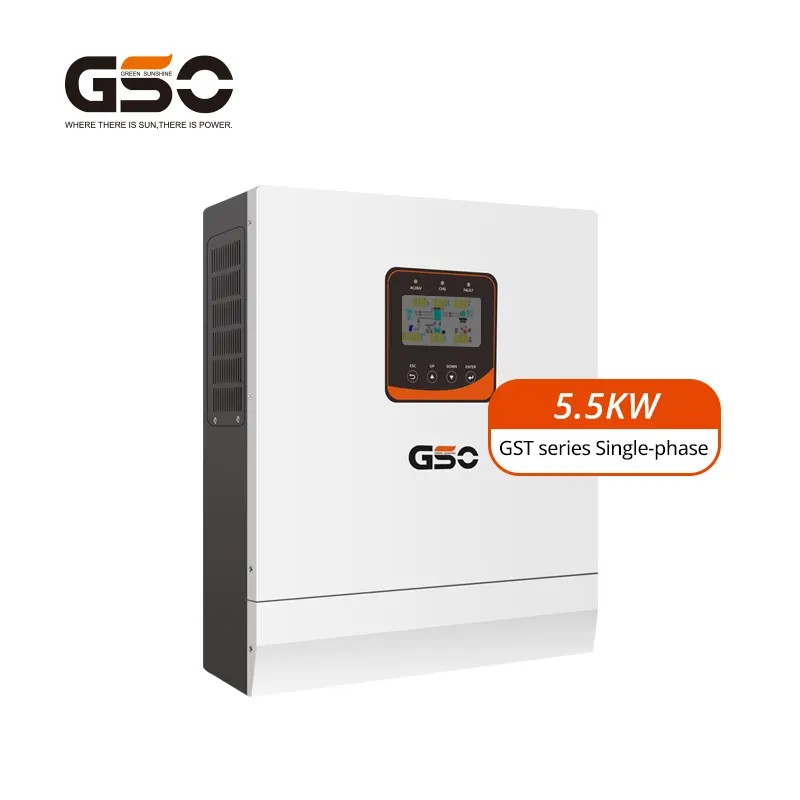

5.5KW Hybrid Single-phase Solar Inverter

GST48-5500 VII

Advantage:

Three output modes

When the grid-connected function is enabled, grid-connected power generation or anti-reverse-current can be set, and it can

also be set to off-grid output mode.

Four charging modes
Mains priority charging, solar priority charging, mains solar hybrid charging and solar only charging.
Emergency function
Support battery-free output and only PV start and load, with battery activation function.

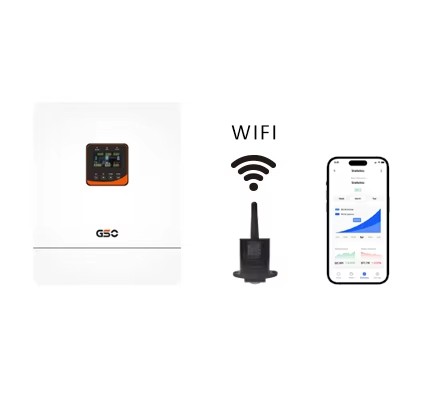

The host computer and the APP cloud communication
The host computer and the APP cloud can display the operating data and status of the system in real time and control and
modify the parameters.
Protection function
Perfect hardware and software protection function, can display the fault type for easy removal.
INQUIRY NOW

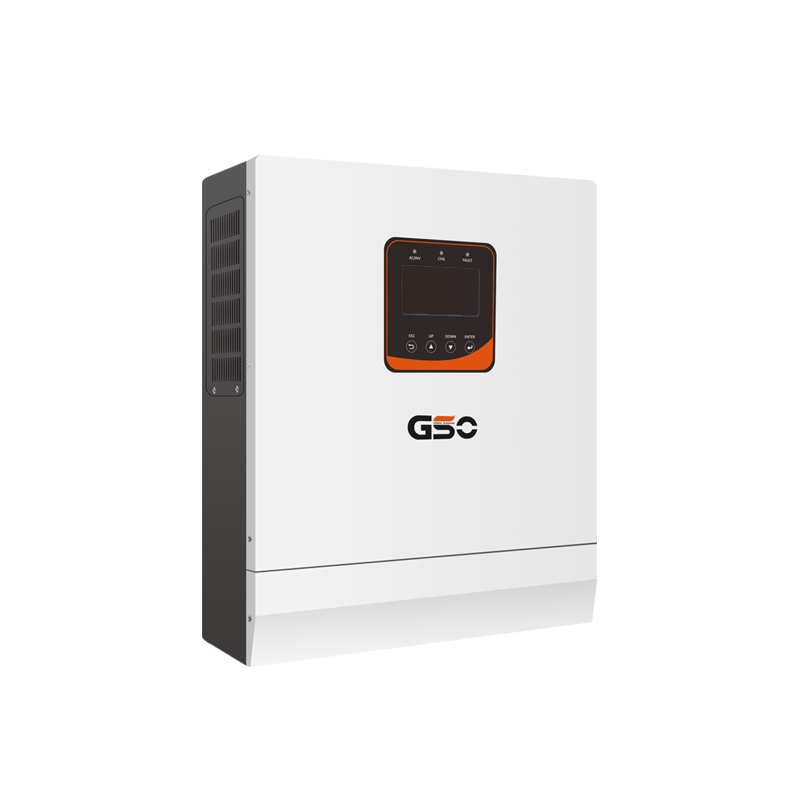

5.5KVA Hybrid Inverter

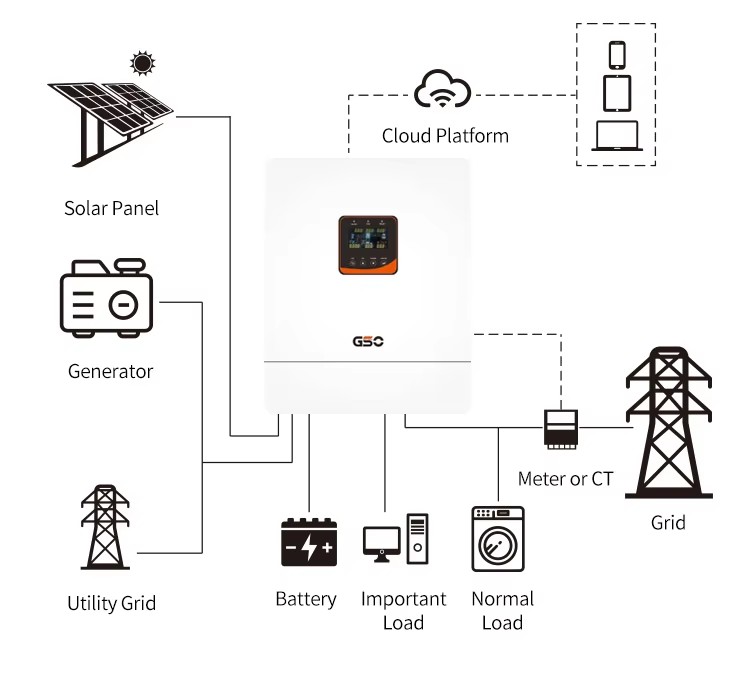

GST series is a new all-in-one solar charge inverter,
which integrates solar energy storage & utility charging energy storage and AC sine wave output.
Support battery-free output and only PV start and load, with battery activation function.

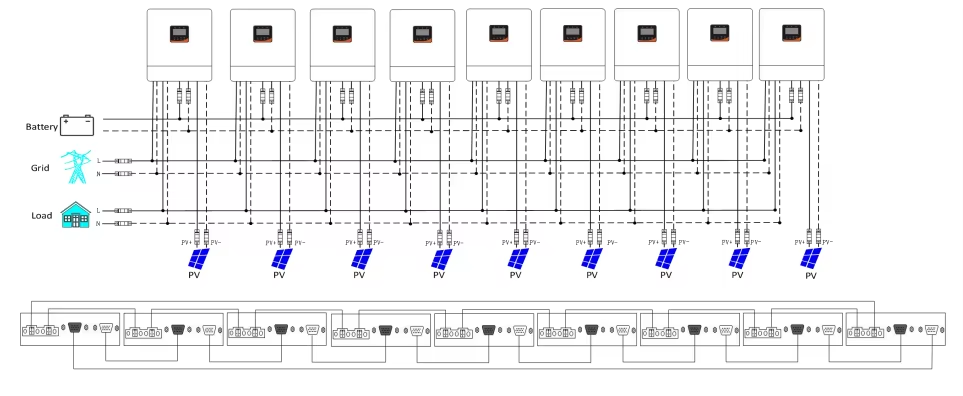

Parallel function


It can be flexibly combined to achieve up to 9 parallel machines,
The parallel system can output single-phase and three-phase AC voltage.




Model

GST48-3500 VII

GST48-5500 VII

GST48-10K VII

INVERTER OUTPUT

Rated Output Power

3500 W

5500 W

10000 W

Rated Output Power

3500 VA

5500 VA

10000 VA

Maximum Peak Power

6000 W

10000 W

15000

Load Capacity with Motors

2 HP

4 HP

6 HP

Rated AC Output

230 VAC (200 / 208 / 220 / 240VAC), 50 / 60Hz

Output Voltage Waveform

Pure Sine Wave

Inverter and Bypass Switching Time

10ms（typical）

Parallel Capacity

9

Maximum Battery Inverter Efficiency

≥93%

Overload Protection

102%~110%，5min；110%~125%，10s；>125%，2s

BATTERY

Battery Type

Lithium / Lead-acid / User Defined

Rated Battery Voltage

48 VDC

Battery Voltage Range

40~60 VDC

Max.MPPT Charging Current

60 A

100 A

200 A

Max.Mains Charging Current

60 A

60 A

120 A

Max.Hybrid Charging Current

80 A

100 A

200 A

Charging current error

±3 ADC

Charging Short Circuit protection

Blown Fuse

PV INPUT

MPPT Quantity

1

2

Max. PV array power

4000 W

5500 W

5500+5500 W

Max. PV input current

13 A

22 A

22+22 A

Max. Open Circuit Voltage

500 VAC

500+500 VAC

MPPT Voltage Range

120~450 VDC

MPPT Tracking Efficiency

99.9%

MAINS INPUT

Input Voltage Range(VAC)

90~280/170~280 VAC

Frequency Range(Hz)

50/60±0.3 Hz

Output Short Circuit Protection

Circuit breaker

Bypass Overload Current(A)

30 A

40 A

63 A

SPECIFICATIONS

Dimensions (D*W*H)

130*350*455 MM

130*445*630 MM

Weight

11 KG

12 KG

27 KG

Waterproof level

IP20

Working temperature range

-10~55 ℃

Storage temperature range

-25~60 ℃

Noise

<60 dB

Cooling method

Forced air cooling (variable speed of fan)

COMMUNICATION

Embedded interface

RS485/CAN/USB/Dry contact

External module

WIFI/GPRS

CERTIFICATION

Safety

CE(IEC62109-1)

EMC

EN61000
