Advantage:
1.Advanced DSP digital control technology
2.Excellent industrial environment protection performance
3.Perfect protection function
4.Intelligent battery management function
5.Economic and safe ECO mode operation
6.High-performance large-screen LCD interface, intuitive and convenient operation
7.Powerful communication interface and network remote monitoring
8.A wide range of optional accessories
Product introduction:

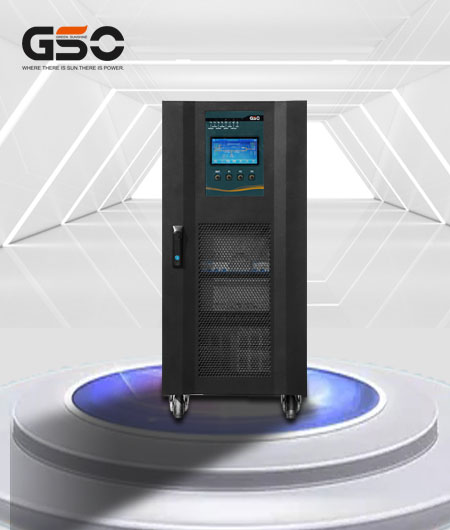

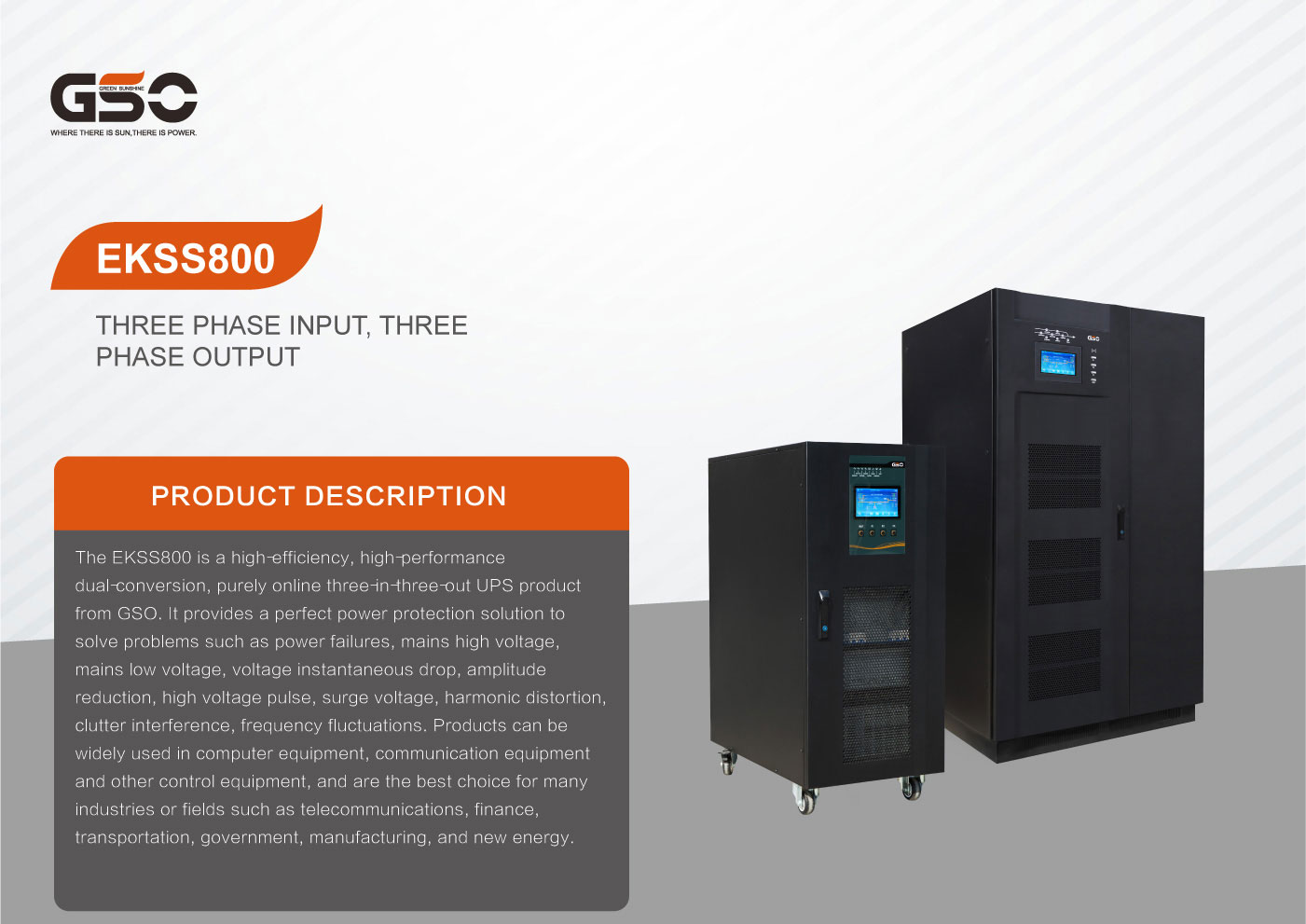

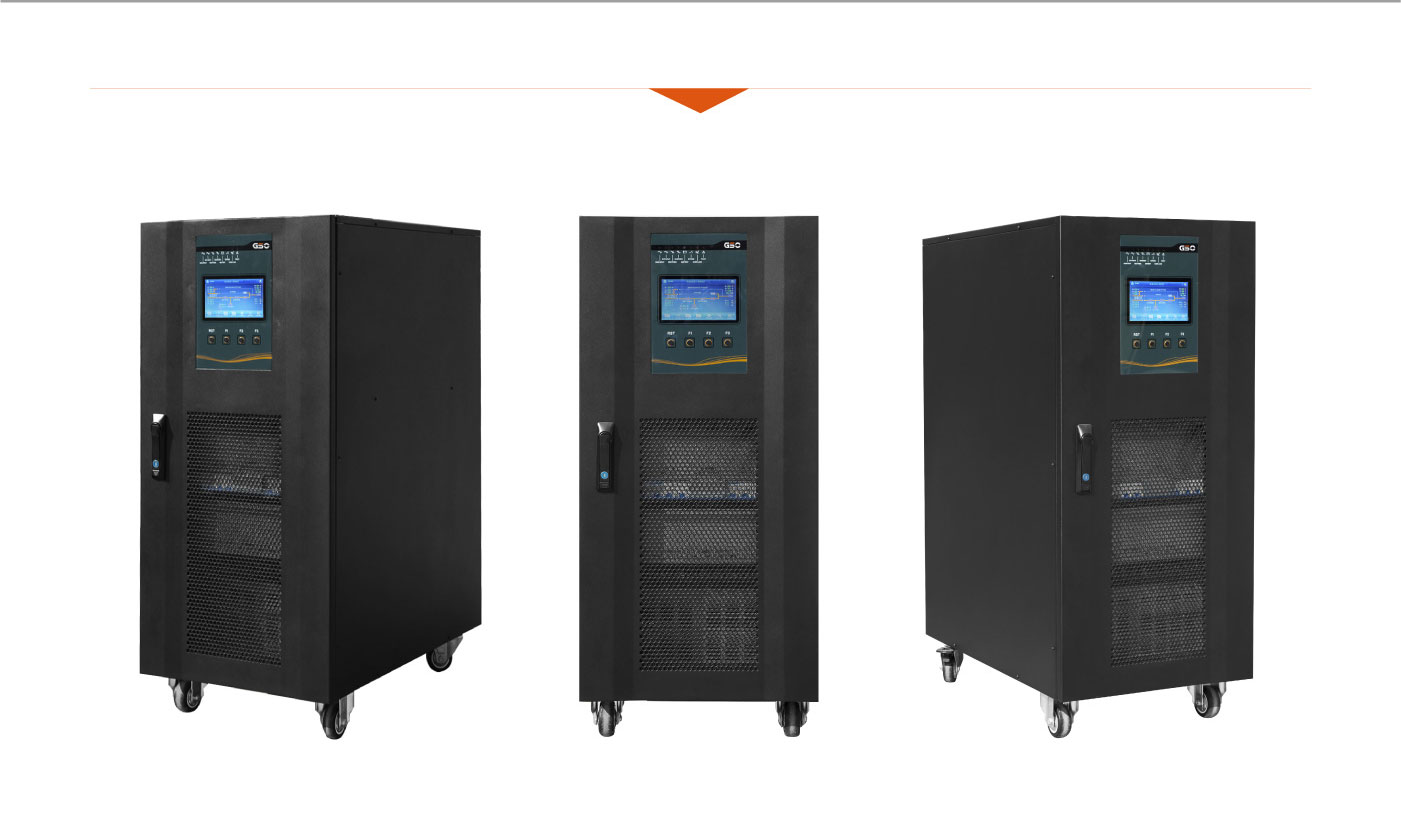

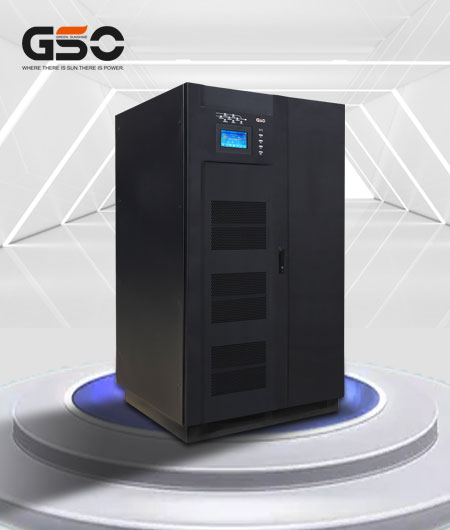

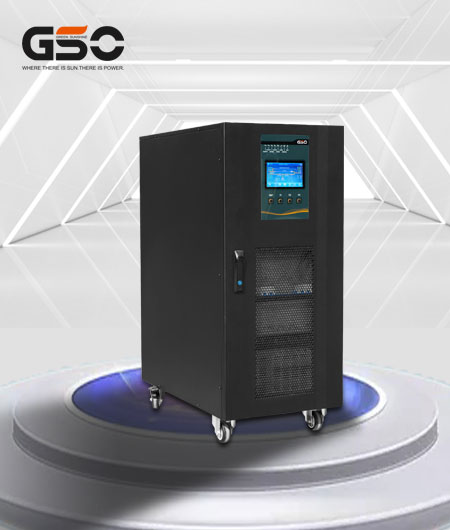

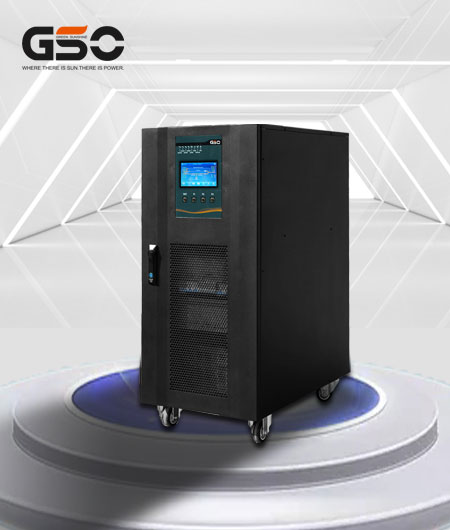

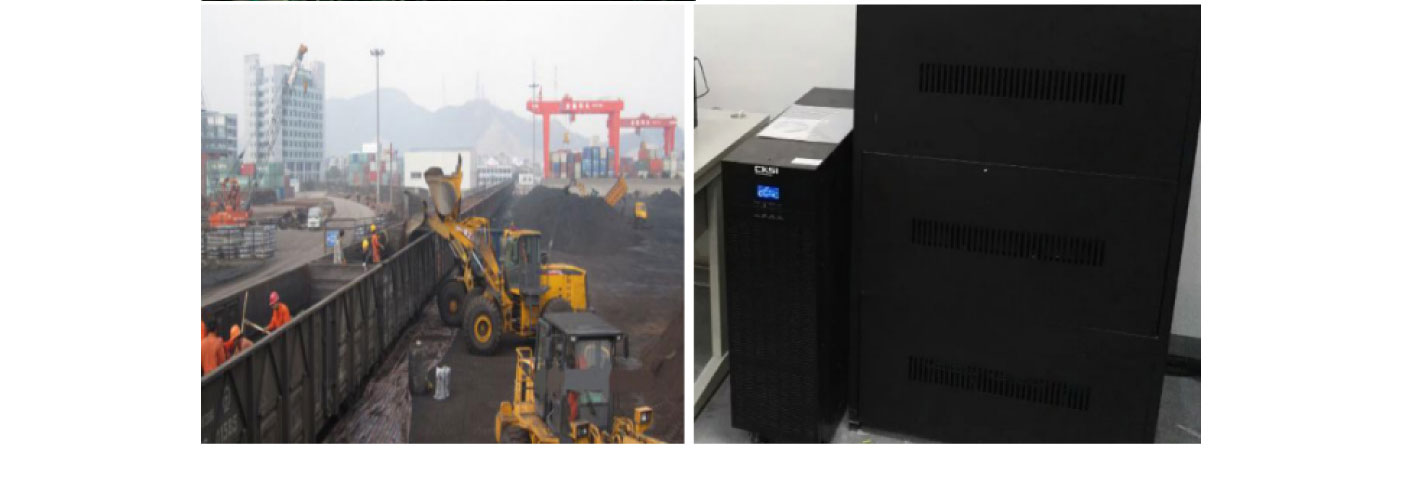

EKSS800 is a high-efficiency, high-performance double-conversion, pure online three-in and three-out UPS product. It provides a perfect power supply protection solution to solve power failures, mains high voltage, mains low voltage, instantaneous voltage drop, damping oscillation, high voltage pulse, surge voltage, harmonic distortion, clutter interference, frequency fluctuations, etc. problem. The product can be widely used in computer equipment, communication equipment and other control equipment. It is the best choice for multiple industries or fields such as telecommunications, finance, transportation, government, manufacturing, and energy.
Performance characteristics:
1.Advanced DSP digital control technology, effectively improving product performance and system reliability;
2.Excellent industrial environment protection performance, perfect protection function, to provide safe and reliable power protection for the load;
3.Intelligent battery management function, which can effectively detect the quality of the battery and prolong the service life of the battery;
4.The rectifier phase sequence self-adaptive function is not affected by the input phase error, reducing the probability of battery discharge;
5.Economic and safe ECO mode operation can make the overall efficiency of the UPS reach 98% or more;
6.Humanized voice prompts and high-performance large-screen touch LCD interface, intelligent boot prompt function and misoperation reminder function, etc., the operation is intuitive and convenient;
7.Powerful communication interface and network remote monitoring, etc.;
8.Abundant optional accessories, which can be flexibly configured according to actual needs;
9.Highly reliable N+X parallel redundancy and series hot backup system, the parallel system adopts digital current sharing technology, CAN bus communication mode without master-slave parallel, and the load imbalance is less than 2%, and the circulating current is less than 3%.
Nominal capacity (KVA) | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | ||
Way of working | Online power supply, static bypass switch (uninterrupted switching), dual conversion technology | |||||||||
AC INPUT | ||||||||||
Phase | Three phase + N + G | |||||||||
Q | 380VAC±20% | |||||||||
Nominal frequency | 50Hz±5% | |||||||||
Soft start | 0~100% 5sec | |||||||||
DC | ||||||||||
Battery unit | 30 knots / 12V series | |||||||||
Q | 360VDC | |||||||||
Floating charge | 405VDC | |||||||||
Recharging current | 1A to 30A (depending on battery capacity setting) | |||||||||
Inverter | ||||||||||
Rated power | Nominal power × 0.8 | |||||||||
Phase | Three phase + N + G | |||||||||
Q | 380VAC ± 3% (steady-state load), 380VAC ± 5% (load fluctuation) | |||||||||
Nominal frequency | 50±0.1 Hz (battery-powered) | |||||||||
Crest factor | 3:1 | |||||||||
Output waveform | Sine wave | |||||||||
Voltage transient | <±5%(Dynamic load) | |||||||||
Recovery Time | <100ms | |||||||||
Load voltage | <±3%;<±5%(Unbalanced load voltage) | |||||||||
Overload capability | 125% 1min 150%1S | |||||||||
System | ||||||||||
Communication Interface | RS232, (USB, RS485, SNMP network monitoring card option) | |||||||||
Interface and instructions | 7-inch color touch display, LED status indication, dry contact, voice prompt (optional) | |||||||||
Operating environment | Temperature: 0~40°C; Relative humidity: 30%~90% (non-condensing); <1000m (1% reduction for each 100m increase, up to 4000m) | |||||||||
cooling method | Forced ventilation (automatic speed control, temperature control) | |||||||||
Noise dB | (According to load size and ambient temperature) 40~65 | |||||||||
Input cable | Bottom/front | |||||||||
Weight (kg) | 180 | 210 | 260 | 360 | 410 | 520 | 580 | 630 | ||
Dimensions (mm) | 450*660*1050 | 500*860*1150 | 720*900*1600 |
