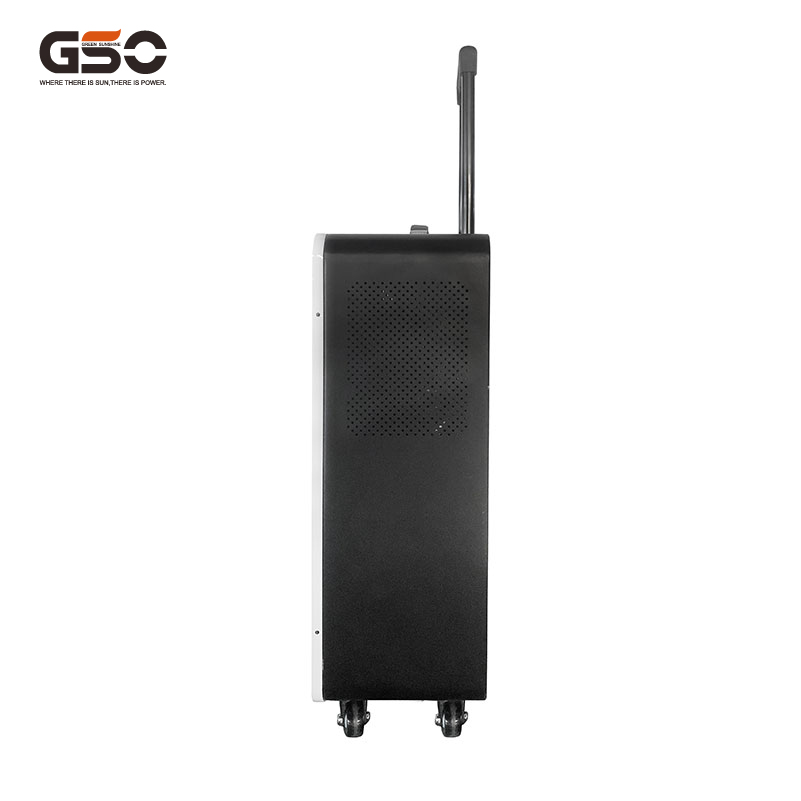

PV & Battery Energy Storage Integrated Machine

Product introduction：

Lithium battery integrated machine, integrated lithium battery and photovoltaic inverter controller integrated machine,

can realize photovoltaic and mains power supply mode, battery or bypass priority can be set, with multiple protections,

such as input battery over-voltage protection, under-voltage protection, over-current protection, output under-voltage protection,

over-current three-level protection (peak high current, RMS current, peak over-current soft start). Built-in lithium battery can store

excess power to meet the uninterrupted use of small outdoor equipment.

Model	GSL48-3.5K-5kWh
INVERTER OUTPUT
Rated output power	3500 W
Rated output powe	3500 VA
Maximum peak power	6000 W
Rated AC output	230VAC（Can be set to200/208/220/240VAC），50/60Hz
Output Voltage Waveform	Pure Sine Wave
Inverter and Bypass Switching Time	10ms（typical）
Maximum Battery Inverter Efficiency	93%
Overload Protection	102%~110%，5min；110%~125%，10s；>125%，2s
BATTERY
Capacity	100 AH
Rated battery voltage	48/51.2 VDC
Battery voltage range	42~54.75/44.8~58.4 V
Maximum MPPT charging current	50 A
Maximum mains charging current	50 A
Maximum mixed charging current	50 A
PV CHARGING
MPPT Quantity	1
Max. PV Array Power	5500 W
Max. PV Input Current	22 A
Max. Open Circuit Voltage	500 VDC
MPPT Work Range	70~450 V
MPPT Tracking Efficiency	99.9%
MAINS INPUT
Input Voltage Range	90~280/170~280 VAC
Frequency Range	50/60±0.3 HZ
SPECIFICATIONS
Dimensions (DWH)	210500805 MM
Weight	70 KG
Waterproof level	IP20
Working temperature range	-10~55 ℃
Storage temperature range	-25~60 ℃
Noise(dB)	<60 dB
Cooling method	Forced air cooling
